Cutting-Edge Equipment

With the ability to accommodate projects of all shapes and sizes, RiAlto is your partner in production

RiAlto Manufacturing is committed to customer satisfaction through the continual improvement of our products, processes, and services. We specialize in machining and metal fabrication utilizing laser cutting, metal forming, and welding for industrial and commercial industries. Our 42,000-square-foot facility is filled with cutting-edge equipment and customer-focused employees. RiAlto is focused on manufacturing quality parts, delivered on time at reasonable prices.

Laser

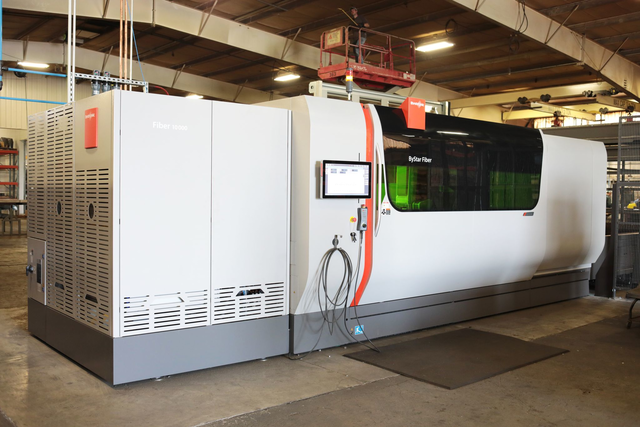

Bystronic ByStar l0K Fiber Laser 3015 with By Trans Cross

  • Cut up to 5′ x 10′ sheets of material.
  • Cutting Material Thickness up to:
    • Mild Steel -1.18″, Stainless Steel 1.18″
    • Aluminum -1.18″, Brass -.59″, Copper -.47″

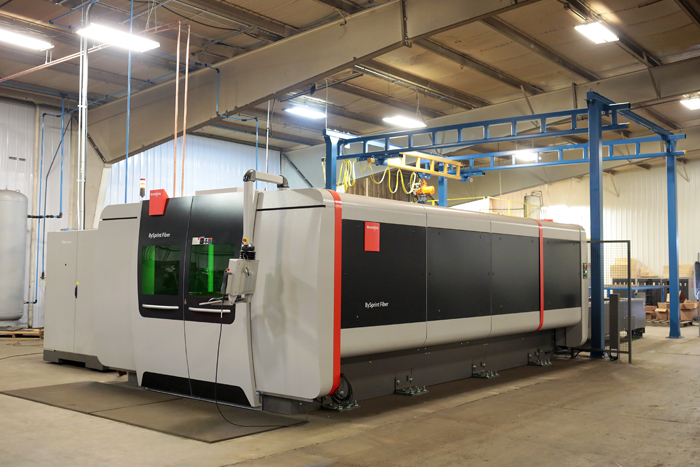

Bystronic BySprint 6K Fiber Laser 4020 w/ ByTrans Extended

  • Cut up to 6′ x 12′ sheets of material.
  • Cutting Material Thickness up to:
    • Mild Steel – 1″, Stainless Steel – 1.18″,
    • Aluminum – 1.18″, Brass – .59″, Copper – .47″

Press Brake

Bystronic Xpert 275 Ton x 13′

  •  Open Height -30″, Stroke -18.5″

Bystronic Xpert Pro 165 Ton x 10′

  • Open Height -25.2″, Stroke -9.8″

(2) Bystronic Xpert 88 Ton x 5′

  • Open Height -22.44″, Stroke -7.87″

Panel Bending

RAS 76.40 Series GIGAbend

  • Working length – 160″
  • Material thickness max. – 6 ga
  • Upper beam open height – 19.68″
  • CNC folding beam adjustment – 3.15″
  • Pivot point adjustment – 3.15″

Milling

Haas VF-7 (4th axis rotary table)

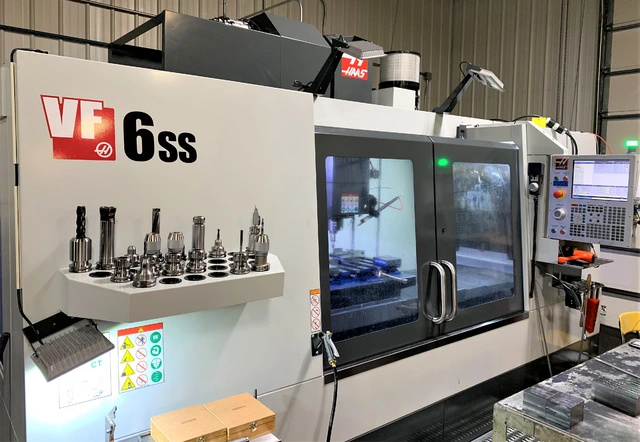

Haas VF-6SS (4th & 5th axis rotary table)

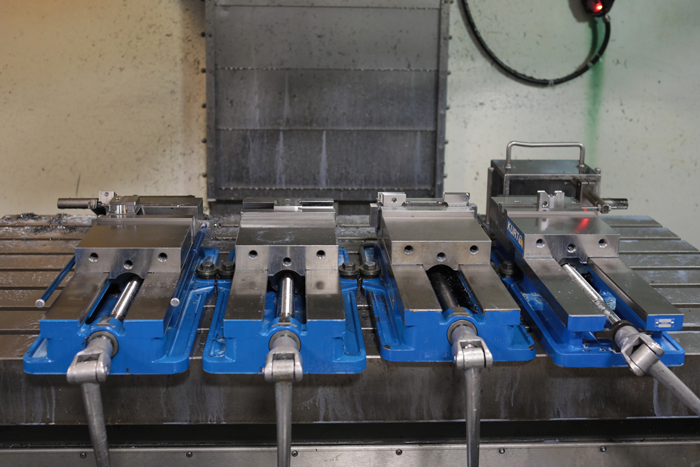

Haas VF-3SSYT (4th & 5th axis rotary table)

Haas VF-3YT (4th axis rotary table)

(2) Haas VF-2SS (4th axis rotary table)

84″ x 32″ x 30″

64 x 32″ x 30″

40″ x 26″ x 25″

40″ x 26″ x 25″

30″ x 16″ x 20″

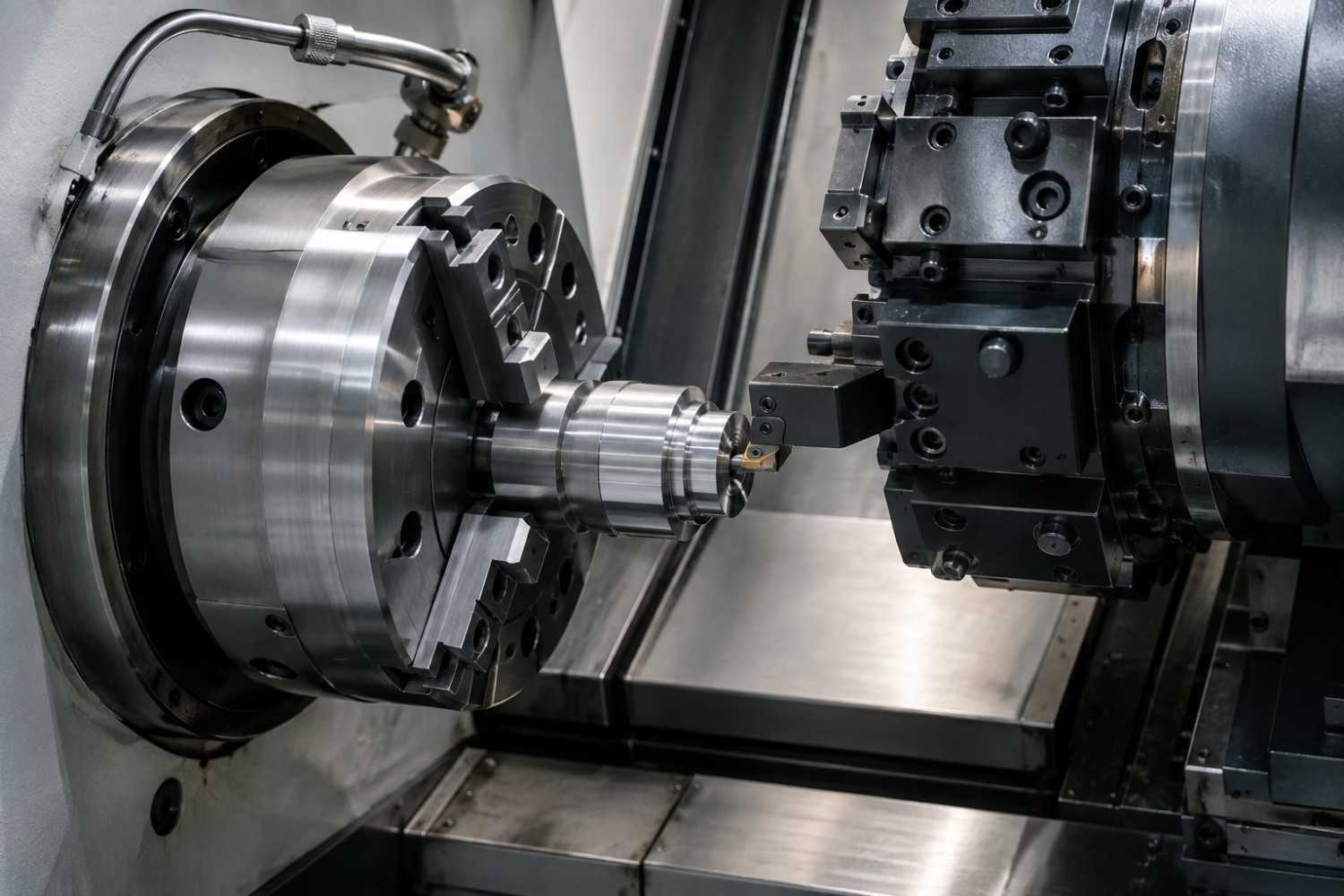

Turning

Haas ST-40L

Haas DS-30Y (dual spindle, bar feeder, live tooling)

Haas ST-30SSY (bar feeder, live tooling)

Haas TL-2

25.5″ x 80″

18″ x 23″

16″ x 23″

16″ x 48″

Tapping

Flex Arm

Flex Arm

0-80 – 9/16″

1/4″-1.25″

Sawing

Hydmech V-18APC Band Saw
• Rectangular Capacity at 90 degree -31″ x 18″
• Round Capacity at 90 degree -17.5″

Automatic Horizontal Bandsaw -16″ x 20″
Miscellaneous Horizontal & Vertical Bandsaws

Welding

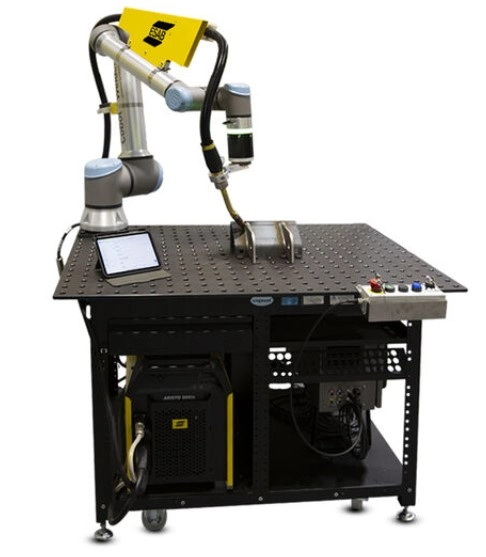

(2) ESAB UR10e Cobots

Mig Welders (Ferrous & Non-Ferrous materials)

  • 16 – 500 max amps
  • 1 – 300 max amps

Tig Welders (Ferrous & Non-Ferrous materials)

  • 3 – 250 max amps
  • 2 – 210 max amps

Quality

Quality Management System

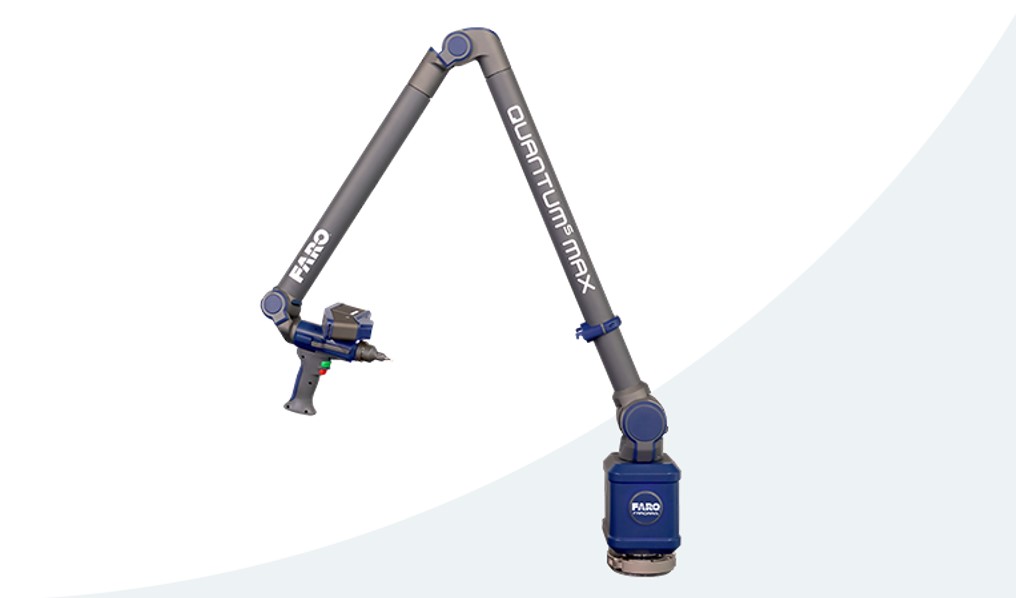

FARO Quantum M MAX 2.0m 7 axis

Bluco Modular Fixturing Table

Wet Paint Capabilities

Engineering Capabilities

Solid Works • AutoCAD

CAM Capabilities

GibbsCAM
